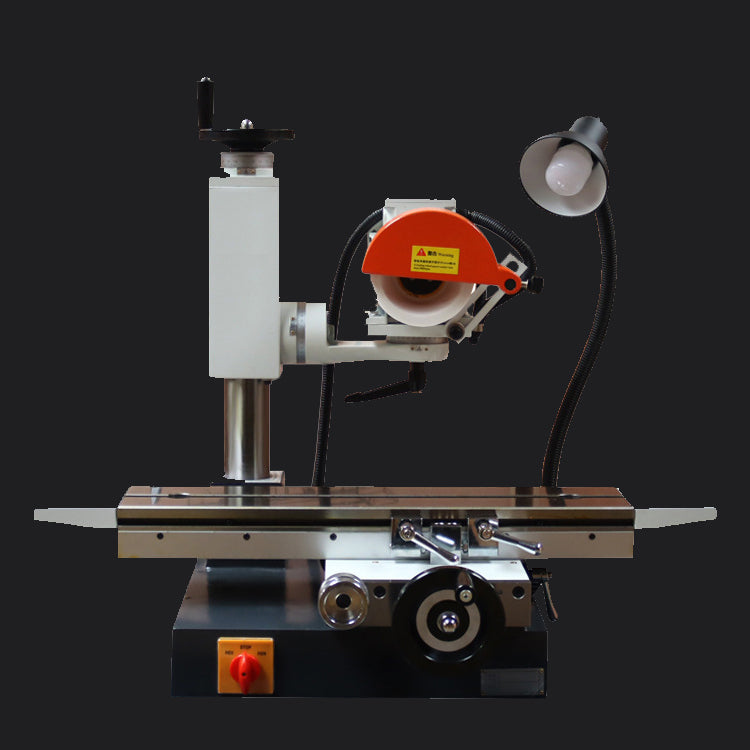

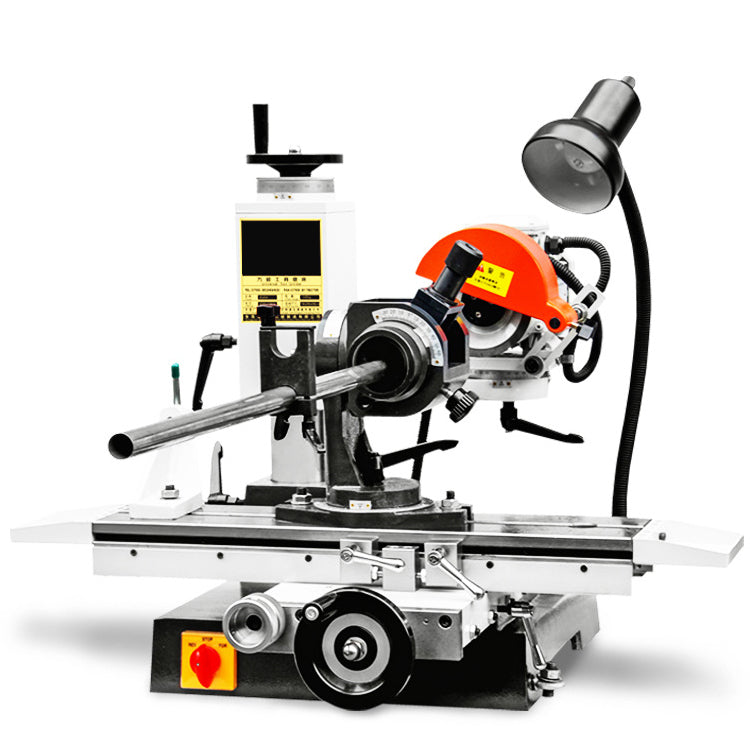

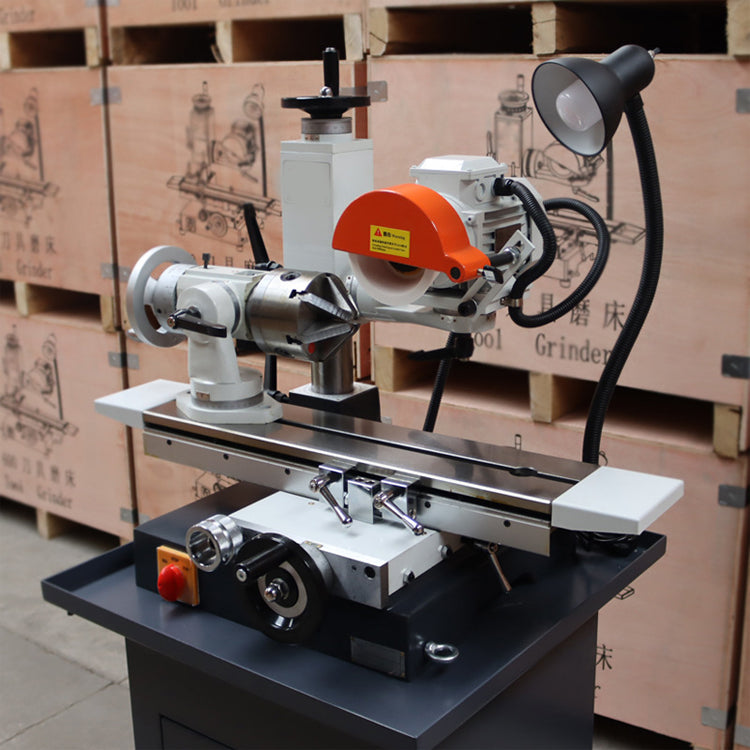

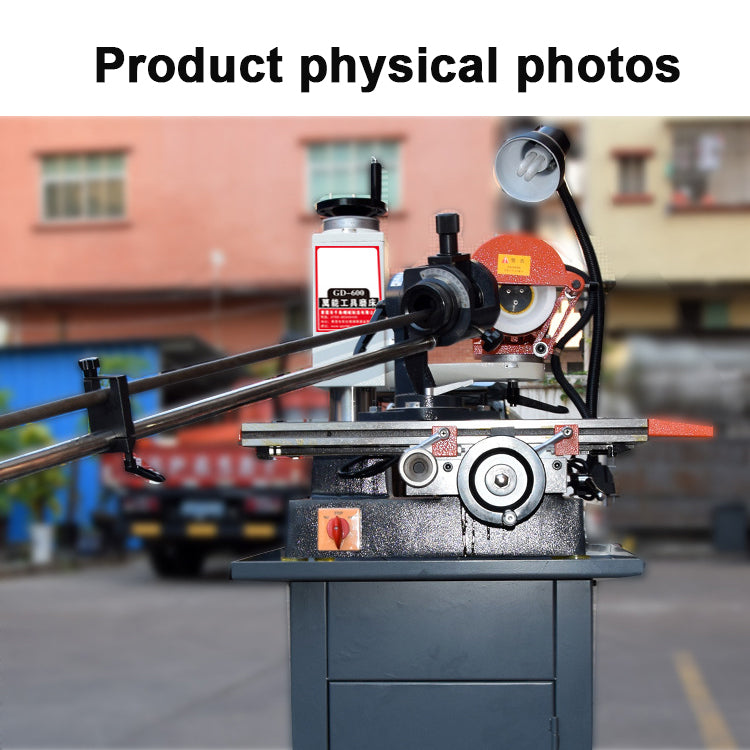

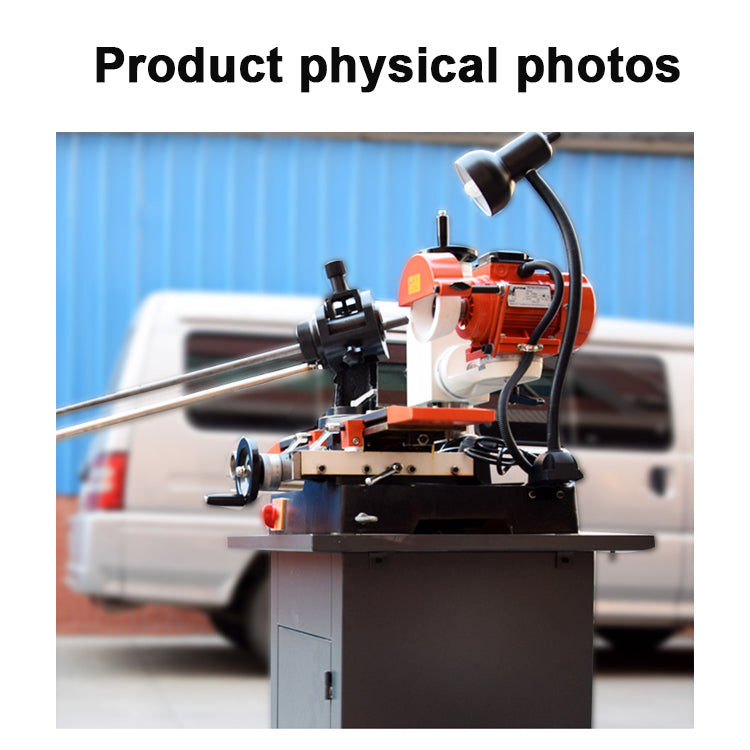

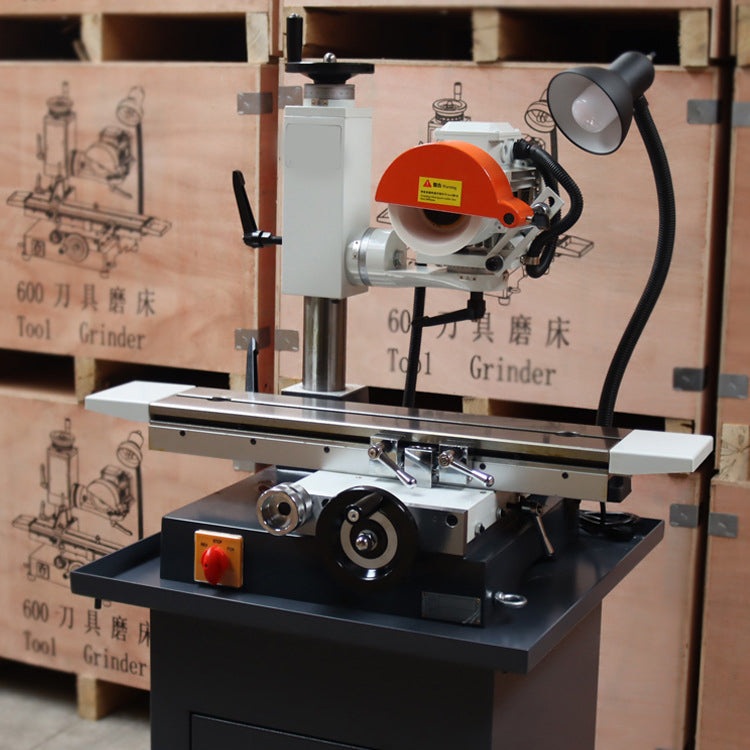

GD-600S Grinding Machine For CNC Cutting Tools

GD-600S Grinding Machine For CNC Cutting Tools

정가 $1,050.00 USD
정가 $1,400.00 USD 할인가 $1,050.00 USD
할인 품절
배송료는 결제 시 계산됩니다.

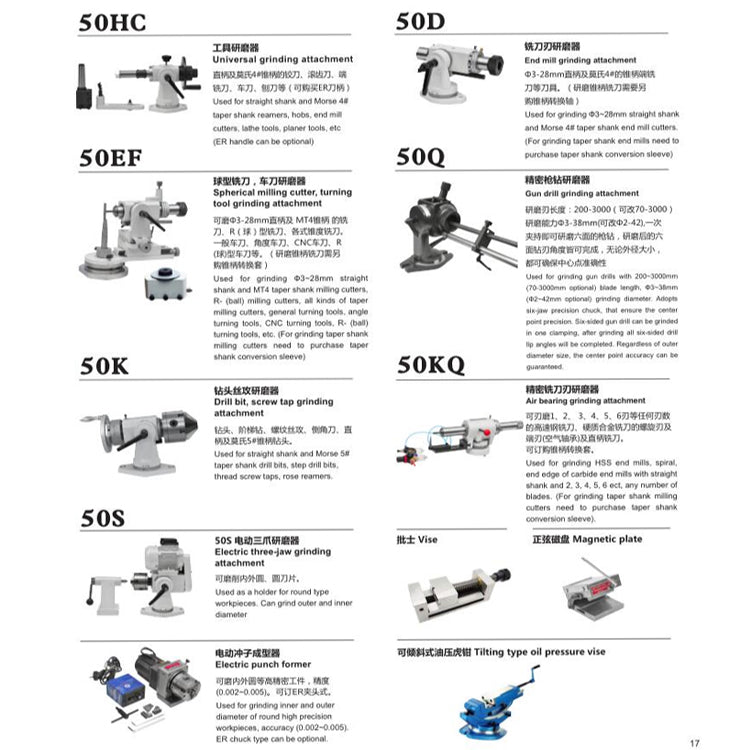

Accessories

GD-600 Gun Drill Tool Grinding Machine

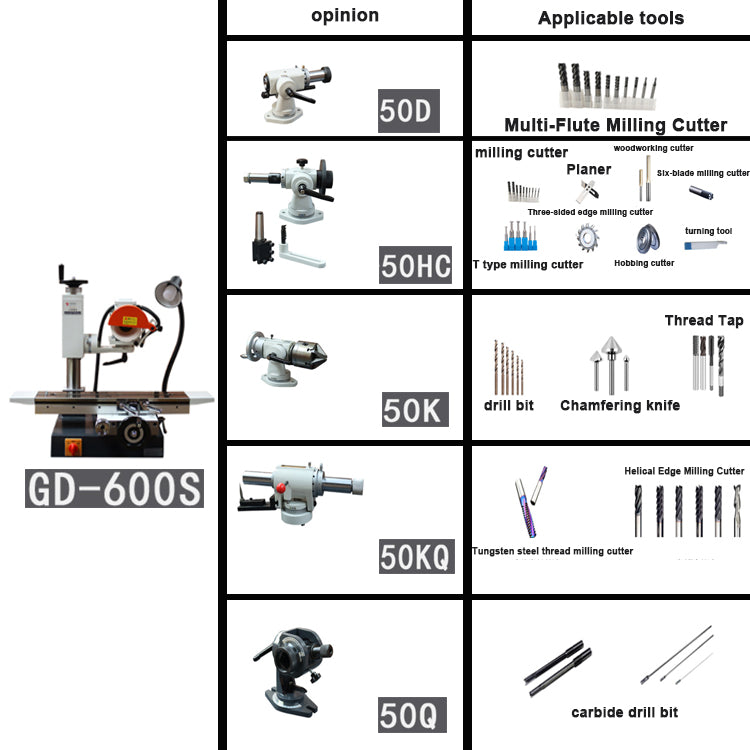

This machine can be matched with various accessories according to the grinding tool, and can grind drill bits, screw taps, end mills, R-type milling cutters, R-type turning tools, hobbing cutters, circular paper cutters and other knives.

The motor can rotate at 360 degrees. When the grinding wheels on both sides are grinding tools of different materials, just rotate the grinding wheel head to start grinding again. There is no need to replace the grinding wheel, which can increase safety and reduce the exchange and dressing of grinding wheels at the same time, increasing the control of tool grinding sex,

High-strength and tough fc300 cast iron is used to maintain mechanical precision for a long time.

Mechanical Specifications:

  • Left and right travel of the worktable: 280mm
  • Workbench front stroke: 150mm
  • Workbench area: 130×500mm
  • Lifting distance of grinding wheel head: 250mm
  • Wheel head rotation angle: 360°
  • Grinding wheel size: 125×50×32mm
  • Grinding wheel speed: 3600rpm
  • Motor pressure, horsepower: 3/4hp, 380v
  • Net Weight Gross Weight: 100gs/120gs
  • Packing size: 750×700×800mm

The type of this product is a grinding machine, supporting OEM, the weight is 270 (kg), the power of the main motor is 0.75 (kw), the external dimension is 700*630*630 (mm), the processing accuracy is high precision, and the grinding wheel speed is 3600 (rpm ), the maximum grinding size is 0 (mm), the control form is manual, the scope of application is general, the applicable industry is general, the layout is vertical, the installation is table, the object of action is hardware, the product type is new, whether The inventory is yes, the model is GD-600S, and the after-sales service is the host warranty for 1 year
